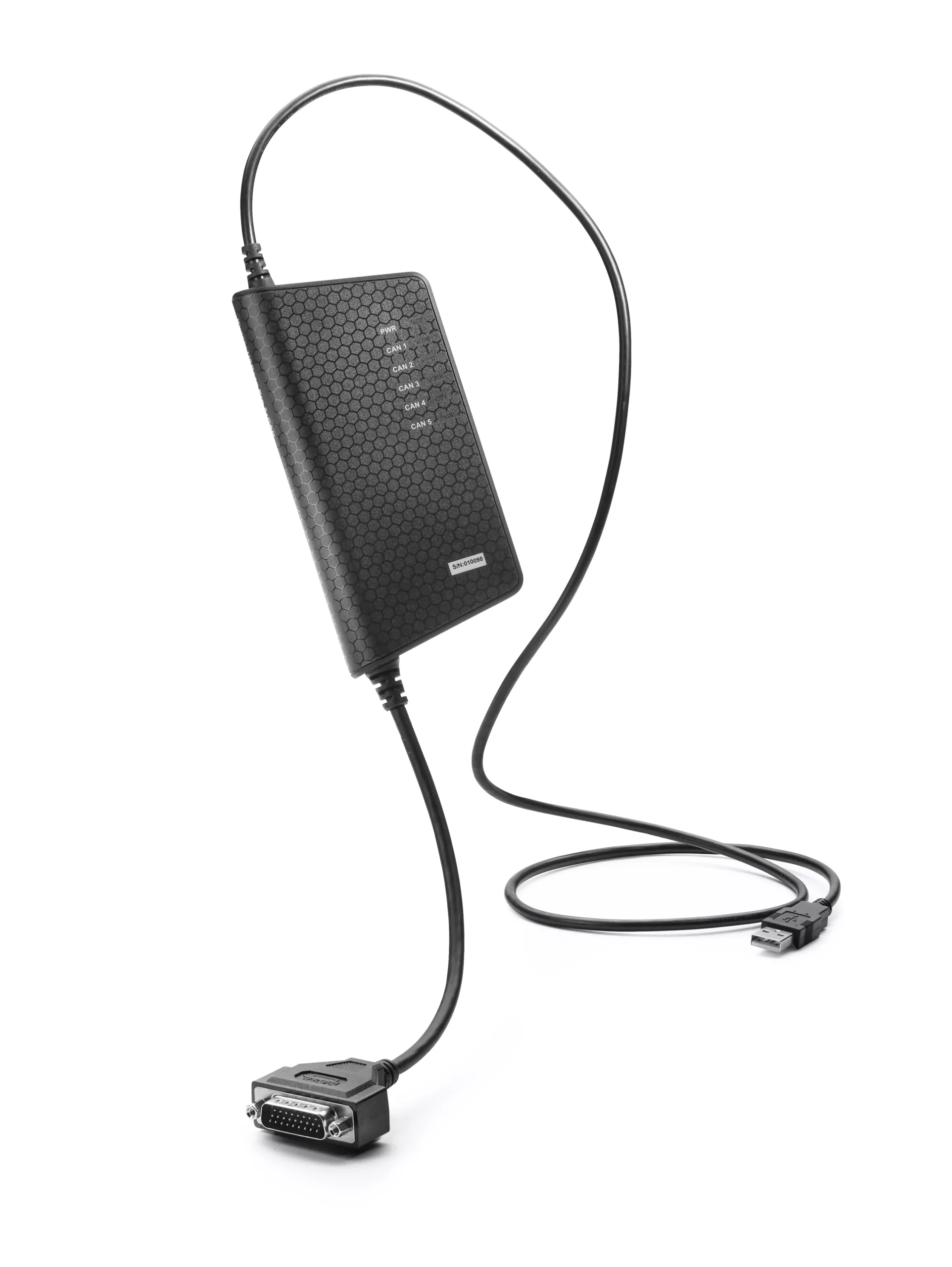

The Kvaser USBcan Pro 5xCAN is a compact, portable, and fully programmable USB-CAN interface. Supporting both Classic CAN and high-speed CAN FD (up to 8 Mbit/s) with high-precision timestamps, it ensures seamless multi-channel performance for analysis and real-time data handling. With automatic time synchronization and full compatibility with Kvaser CANlib, it integrates effortlessly with various applications.
Major Features
- USB CAN interface with Kvaser t-script.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Power is taken from the USB port, or from the USB port together with the CAN connector. External power is recommended when using all 5 channels simultaneously.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Kvaser MagiSync – automatic time synchronization.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Includes 5 channel breakout cable.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
Technical Parameters
- Bit Rate (kbps) 20 – 1000 kbps
- 23 mm x 68 mm x 170 mm
- Weight 178 g
- Connectors 26-pin HD D-SUB
- CAN FD Bitrate Up to 8 Mbit/s
- Galvanic Isolation Yes
- Silent Mode Yes
