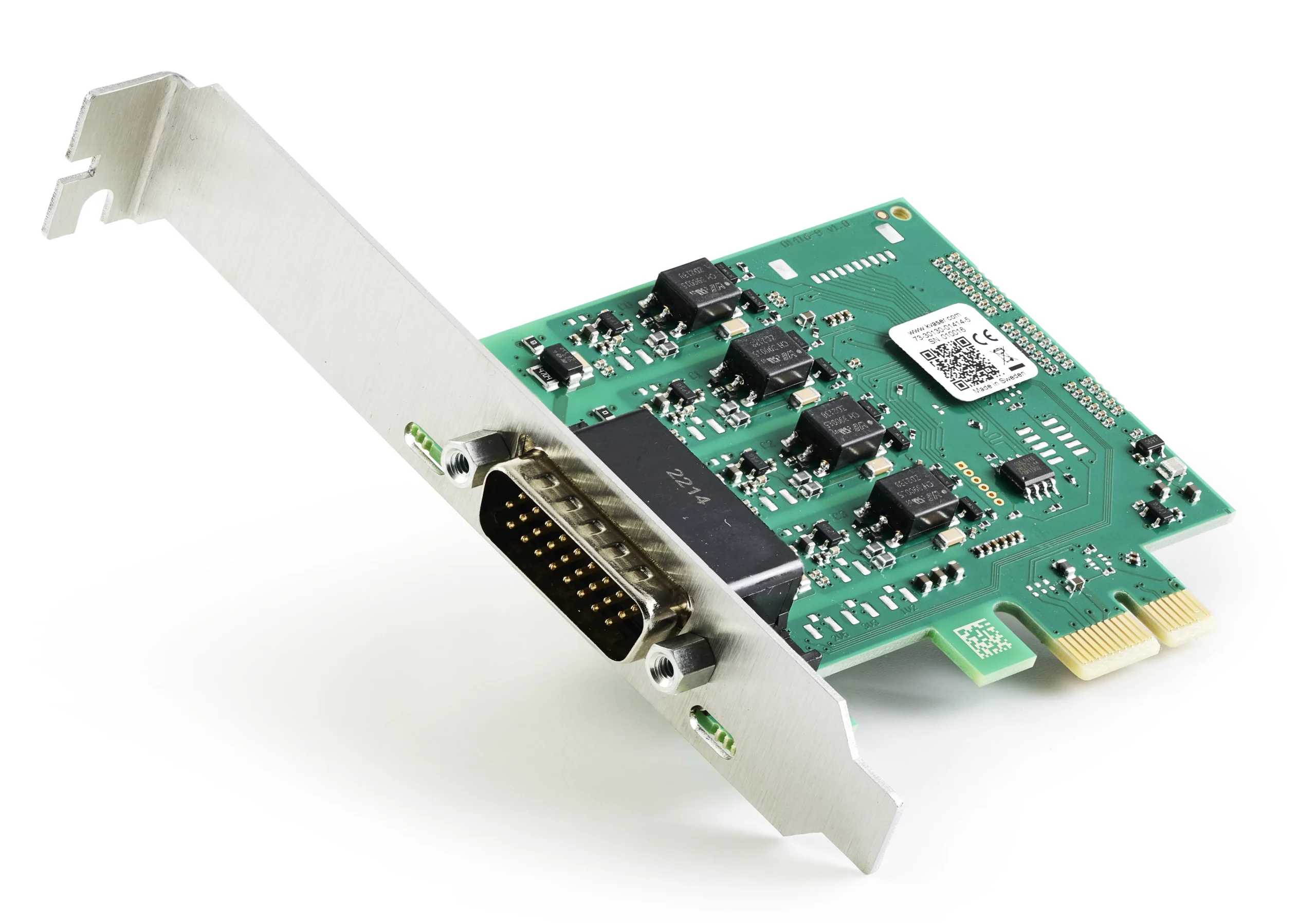

The Kvaser PCIEcan 4xCAN v2 is a compact yet advanced multi-channel, real-time CAN interface that supports transmission and reception of both standard and extended CAN messages with high-precision timestamping. It is compatible with applications that use Kvaser’s CANlib.
Major features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000®and DeviceNet.
- Support for SocketCAN.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Low profile board, includes low and high profile brackets.
- Includes 4 channel breakout cable.
Tech parameters
- Bit Rate (kbps) 20 – 1000 kbps
- Weight 50 g
- Length 86 mm
- Width 69 mm
- Temp range -40 °C to 85 °C
- Interfaces PCI Express
- Connectors 26-pin HD D-SUB
- Channels 4
Software
- Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
