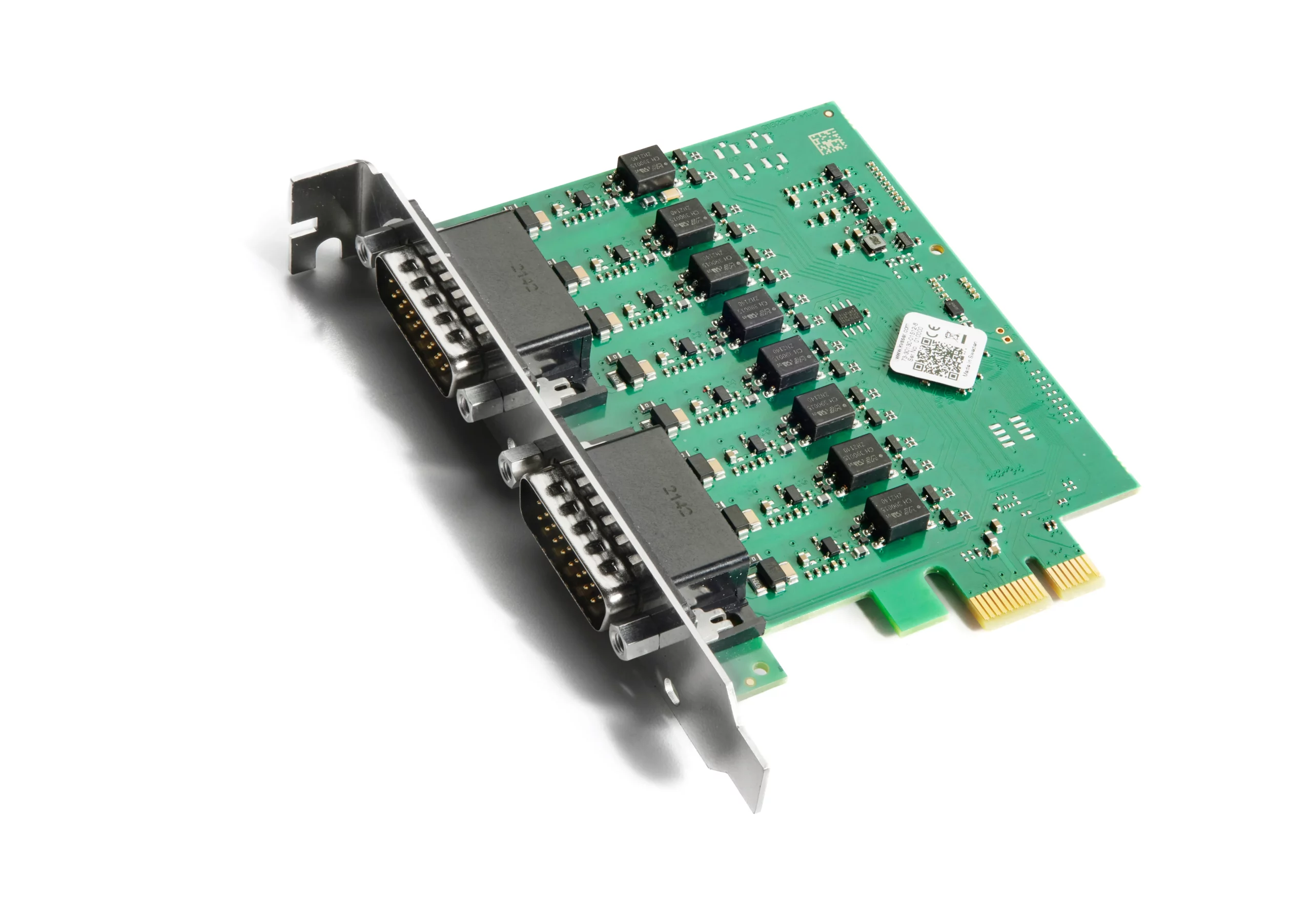

The Kvaser PCIe 8xCAN maximizes channel density through a single PCIe x1 slot, enabling the effortless design of advanced CAN systems.
It is a compact and advanced multi-channel real-time CAN interface with eight CAN/CAN FD channels.
The Kvaser PCIe 8xCAN is highly scalable. Multiple boards can be connected to capture data from tens of CAN channels at a time. An example is hardware-in-the-loop (HIL) suites for automotive testing, where 20 CAN channels are commonly required.
Major features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Supports silent mode for analysis tools – listens to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Full-profile PCIe card.
- Support for SocketCan.
Tech parameters
- Bit Rate (kbps) 20 – 1000 kbps
- Weight 72 g
- Length 102 mm
- Width 80 mm
- CAN FD Bitrate Up to 8 Mbit/s
- Connectors 26-pin HD D-SUB
- Temp range -40 °C to 85 °C
- Channels 8
