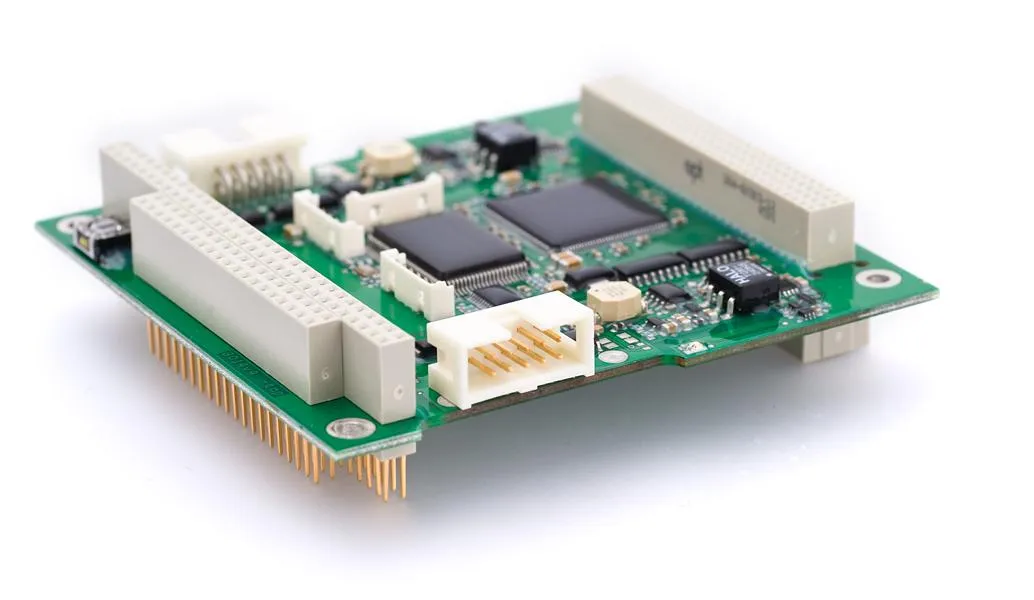

Kvaser PC104+ HS/HS IDC is a two channel, PC/104+ compatible CAN (controller area network) interface with IDC Header CAN connectors. It includes a high-performance, on-board microcontroller for CPU offloading, ensuring fast response times.
This product is Not For New Design (NFND) & End of Life (EOL).
Major Features
- Quick and easy plug-and-play installation.
- High-speed ISO 11898 compliant driver circuits, supports bit rates up to 1 Mbit/s.
- Compliant with the PC/104-Plus specification.
- Stack-through connector.
- On-board 16-bit microcontroller.
- Communicates with the PC through a fast DPRAM.
- Supports CAN 2.0 A and 2.0 B (active).
- CAN oscillator frequency of 16 MHz.
- Interfaces the CAN bus with IDC Header connectors.
- Wide temperature range, -40°C – +85°C.
Technical Parameters
- Bit Rate (kbps) 5 – 1000 kbps
- Dimension 20 mm x 91 mm x 96 mm
- Weight 84 g
- Temp range -40 °C to 85 °C
- Silent Mode Yes
- Interfaces PC PC 104+
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
