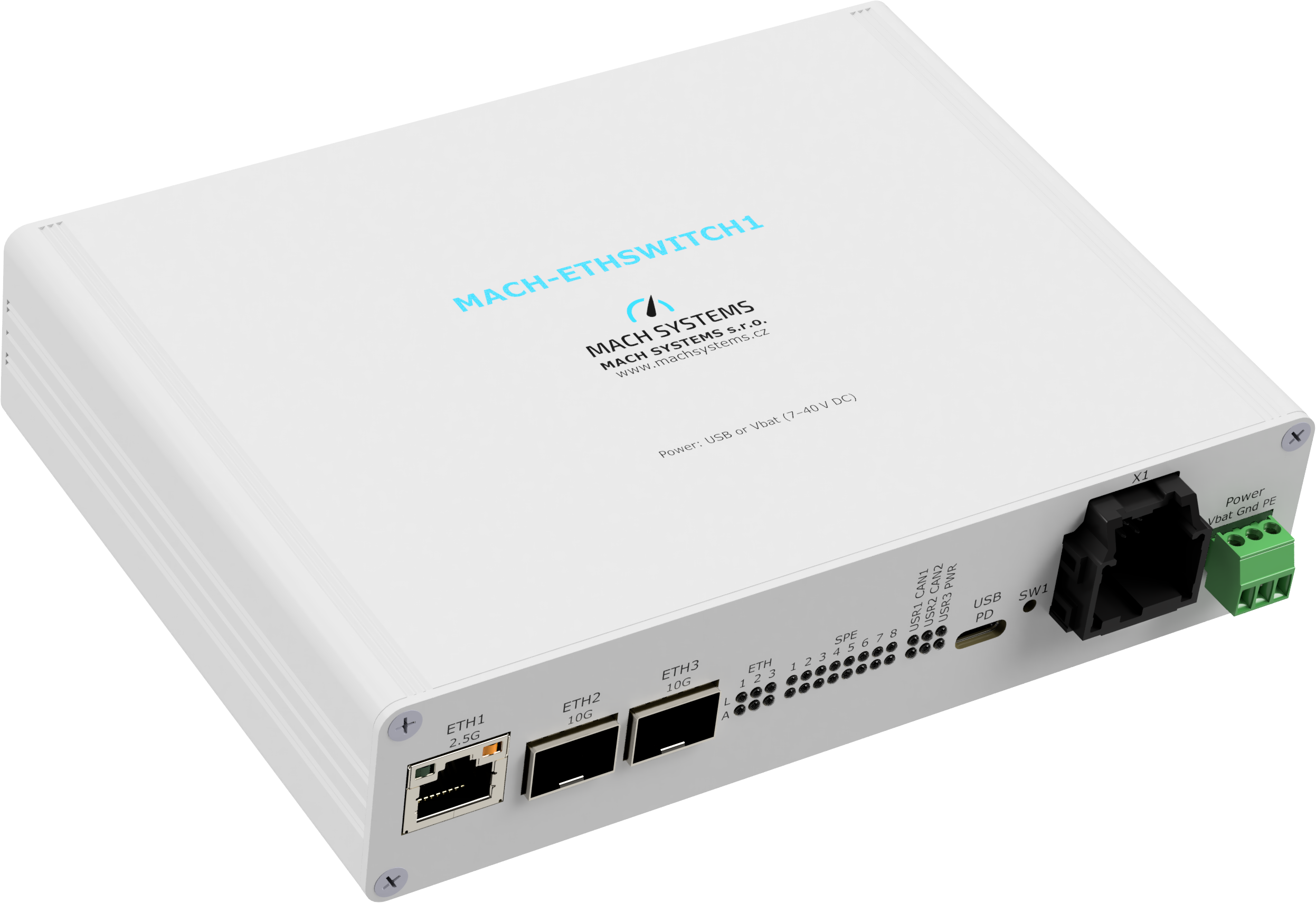

The MACH-ETHSWITCH1 is a multi-port managed Automotive Ethernet switch that features eight 100/1000-BASE-T1 ports, two 10 Gbps SPF+ slots, one 2.5BASE-T RJ-45 port, and two CAN channels with CAN FD support.
The Ethernet switch supports advanced features such as MACsec security, MKA (MACsec Key Agreement), TC10 sleep & wake-up, active TAP (port mirroring), and Ethernet-CAN(/FD) gateway.
The product is available in two variants that differ by T1 connector type: TE MATEnet and Rosenberger H-MTD. Each variant is offered in an aluminum enclosure, with or without flanges.
Specification
- 8x 100/1000BASE-T1 port
- 2x SFP+ slot (up to 10 Gbps each)
- 1x 2.5GBASE-T port with RJ-45 connector
- MACsec support
- MKA support
- TC10 support
- 2x CAN(/FD) channel
- Optional KL15
- TE MATEnet or Rosenberger H-MTD connector variants
Features
- Port mirroring / frame forwarding (active TAP)
- Port isolation
- VLAN tagging
- AVB / TSN
- Advanced packet filtering and routing
Use Cases
- Automotive Ethernet switch
- Automotive Ethernet Active TAP
- Automotive Ethernet – CAN(/FD) gateway
Ordering Information
| Product Number | Description |
|---|---|
| MACH-ETHSWITCH1-H | MACH-ETHSWITCH1 with Rosenberger H-MTD connectors; enclosure without flanges |
| MACH-ETHSWITCH1-HF | MACH-ETHSWITCH1 with Rosenberger H-MTD connectors; enclosure with flanges |
| MACH-ETHSWITCH1-M | MACH-ETHSWITCH1 with TE MATEnet connectors; enclosure without flanges |
| MACH-ETHSWITCH1-MF | MACH-ETHSWITCH1 with TE MATEnet connectors; enclosure with flanges |
| MACH-SW-MKA-MACSEC | Optional MKA and MACsec feature Note: One-time payment per device serial number |
