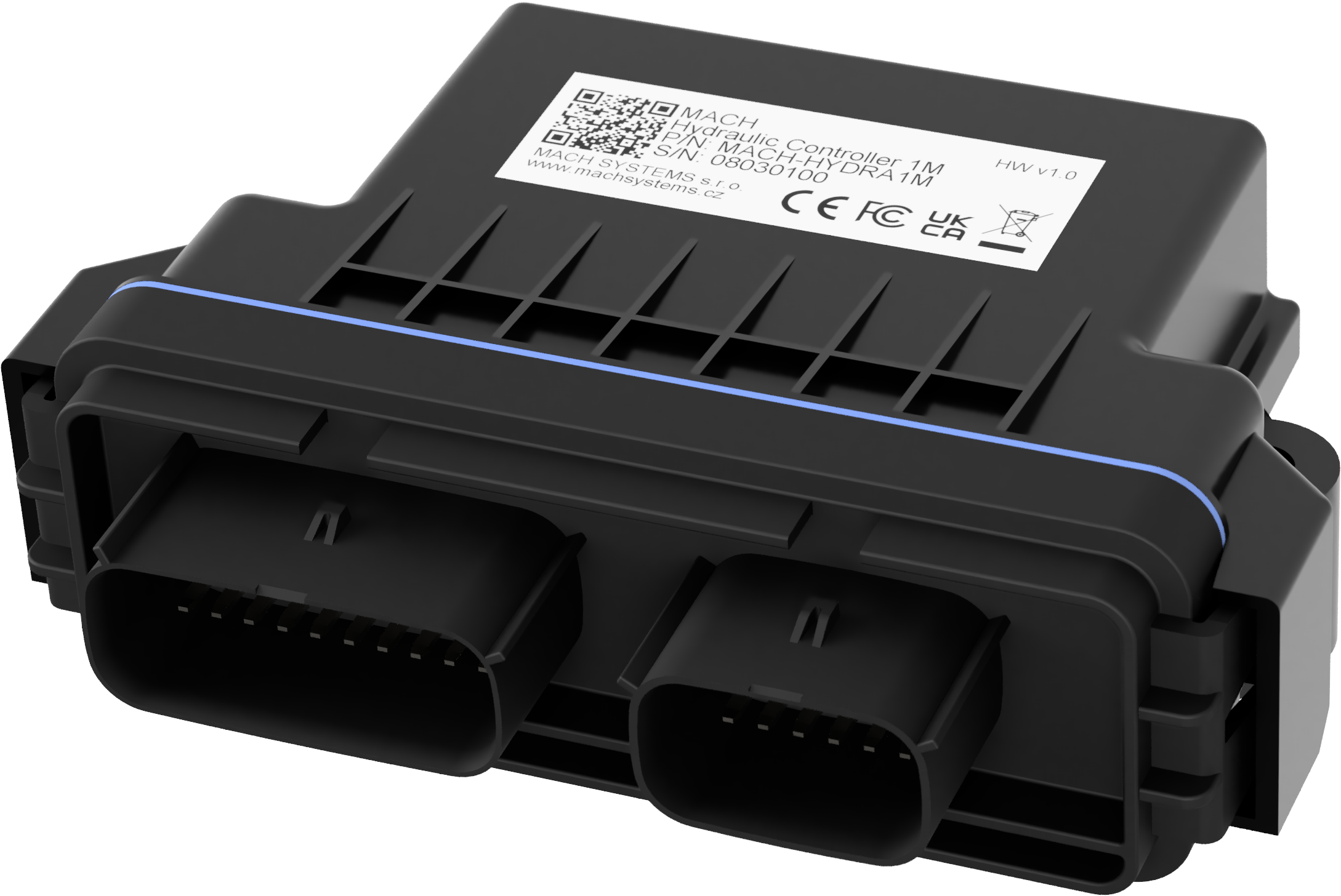

The MACH-HYDRA is an electronic control unit designed to operate up to 20 proportional hydraulic valves.
It supports both voltage and current control modes, allowing precise adjustment of valve positions. The controller communicates over the CAN/CAN FD bus (SAE J1939 protocol), and selected valve outputs can also be driven via external voltage or current loop inputs.
The hydraulic solenoids can be connected either in low-side or high-side, extending the flexibility of electrical wiring.
Specification
- Up to 20 proportional solenoid control outputs with precise current-mode control
- Configuration per channel: high/low side drive, current/voltage mode, dither
- CAN(/FD) with SAE J1939 support
- Solenoid control over CAN(/FD) or multi-purpose inputs
- Configuration over CAN(/FD) or NFC
- Fault diagnostics
- 4 multi-purpose I/O
- Voltage input 0-10 / 0-30 V
- Current-loop input 0-20 / 4-20 mA
- PWM output with current sense
- Optionally 3 analogue voltage input 0-10 / 0-30 V
- Automotive-grade enclosure with IP67
- Optionally H-bridge for motor control
- Optionally 5 V output for sensors
- Optionally KL15 (ignition key) wake-up line
- Functional safety in firmware
- ECU variants: 4 or 20 valve outputs
